sovie |
|---|
| sovie is the name given to a modified Sovol SV06 Plus. |
|---|
| maximum acceleration: 40,000 mm/s^2 |
| maximum velocity: 1,200 mm/s |
| maximum flow rate: 55 mm/s^3 |
i have owned the Sovol SV06 Plus for a little over a year, and this page is a culmination of the modifications that i have done to improve it, as well as a page to show the performance that the machine is now capable of.
i do not recommend buying a stock machine just to do these mods, but if you already have the machine and wish to have a BOM, please see here.

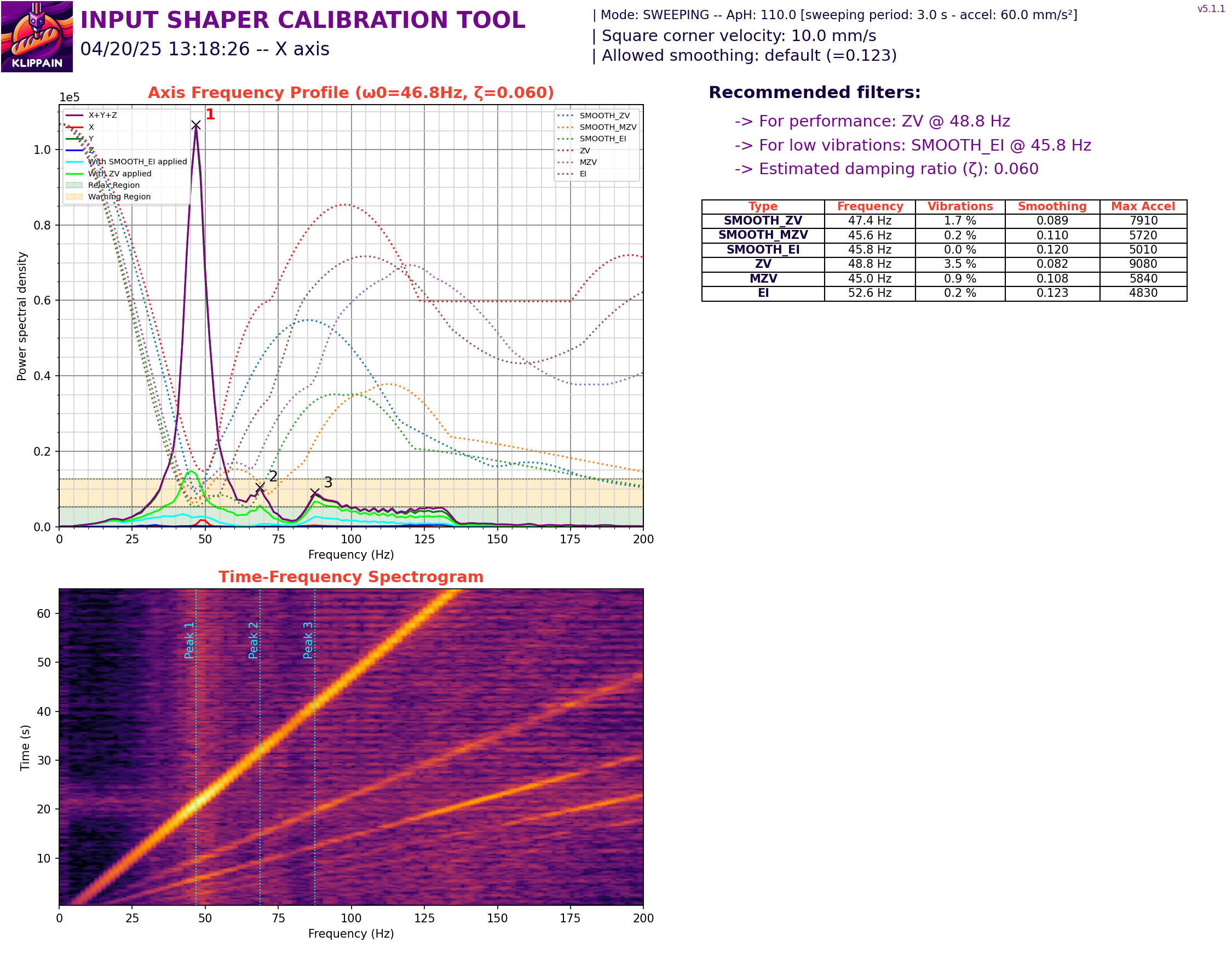

- input shaper graph X

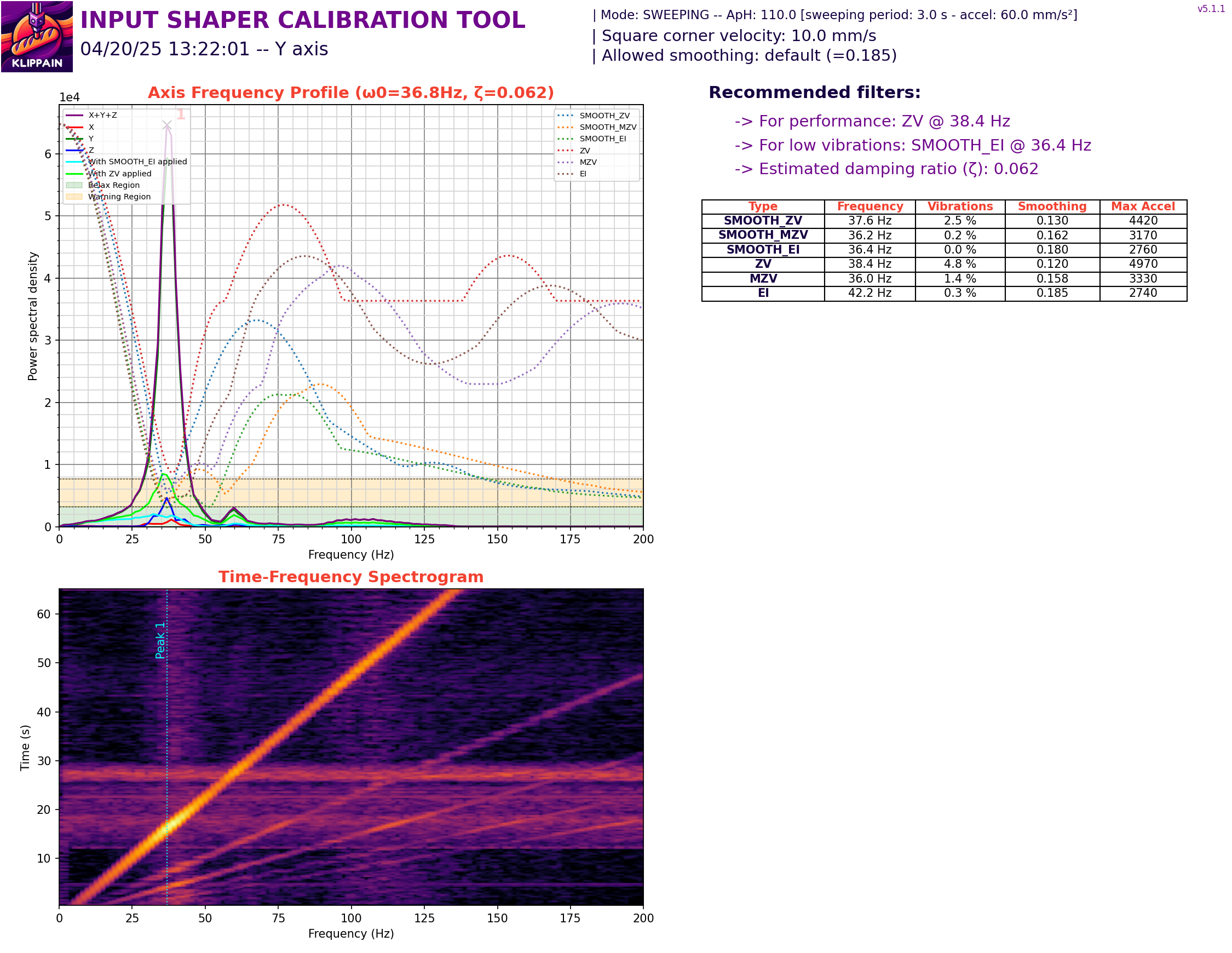

- input shaper graph Y
- 25K accel + 17 SCV test
- random print 1
- petg benchy
- utility blade holder
- ebox lid
- low poly pikachu
- hydroponics rings
- hydroponics pots
- 3dbenchy speedrun 4:13 (outdated)
- pi: BIGTREETECH BTT Pi V1.2
- mcu: BIGTREETECH SKR PRO V1.2 32 Bit Control Board
- drivers: BIGTREETECH TMC2209 V1.3 Stepper Motor Driver
- firmware: Kalico bleeding-edge-v2
- nozzle: High Flow 3D Printer Printing Nozzle
- volcano to v6 adapter: High Flow Copper Volcano Adapters
- v6 nozzle adapter: For V6 / RapidoHot End Upgraded V6 Plus Adapter
- probe mount: Sovol SV06 Plus inductive probe bracket
- x/z axis steppers: E Series Nema 17 Bipolar 55Ncm
- y axis steppers: LDO-42STH48-2504AC RevA 1.8°
- y axis stepper mounts: dual y for sv06 plus
- extruder fan: WINSINN 50mm 5015 Blower Fan 24V, 3D Printer 24 Volt
- extruder fan duct: Sovol SV06 5015 Fan Mount (heatcreep fix)
- layer fans: 4 Pcs Gdstime 50mm x 15mm Turbine Turbo Micro Blower Fan 5V 12V 24V 5015
- layer fans' mounts and ducts: Dual 5015 Fan Duct Quadro SV06/Plus
